産品名稱

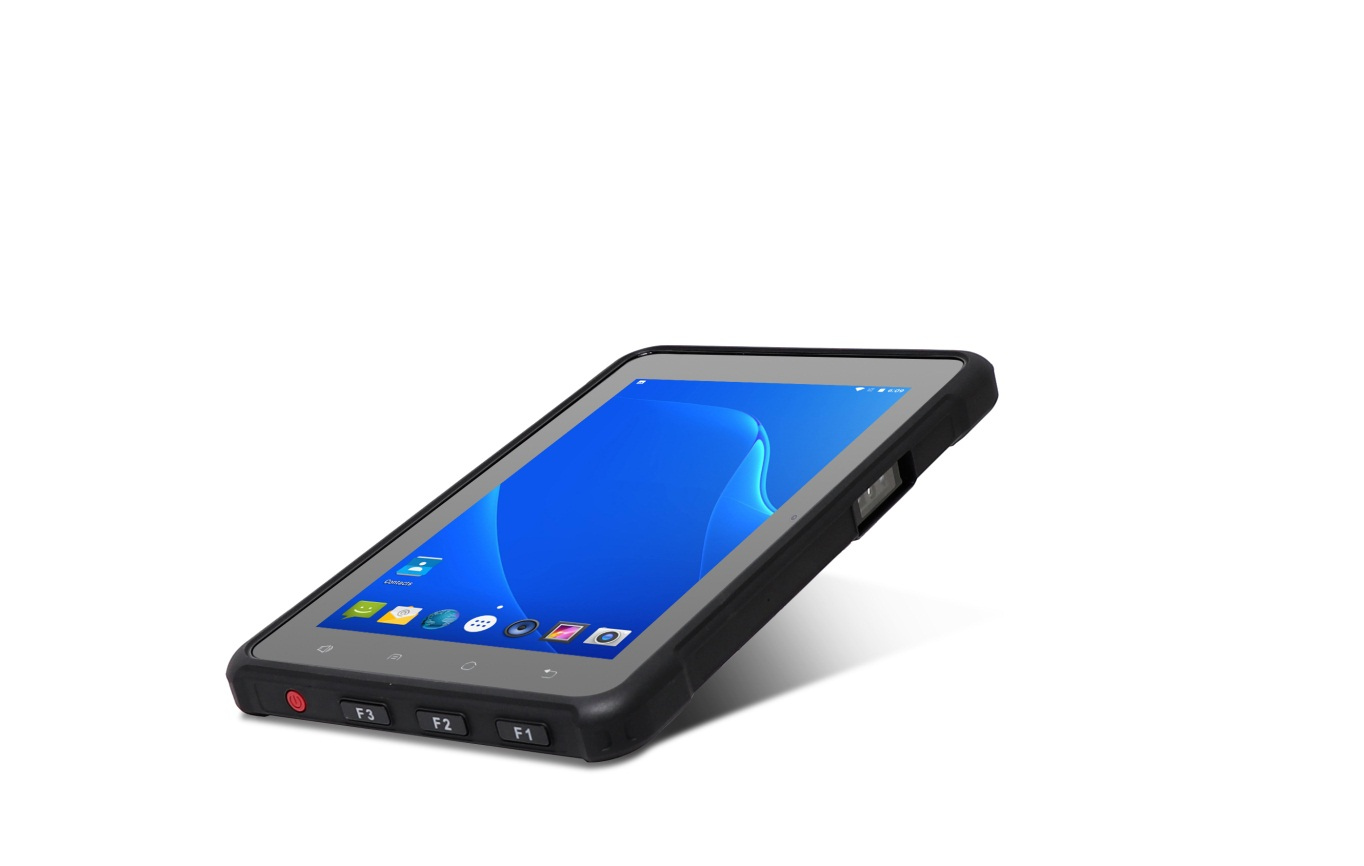

P8 is extend HW product serials into Android OS 10.∞0 industrial tablet.
P8 is Guang Zhou DADAO serial products extend HW product serials into Android OS 10.0 industrial tablet. Inside the compact tablet terminals, sealing lev el of IP67 water/dust proof, 1.2 m drop survival, ergonomic design, over-molding structure, extremely large internal 8000mAh battery, and 8.0 inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Fast 2.0GHz octa-core processor 2GB RAM/16GB ROM or 4GB RAM/64 GB ROM and up to 256GB expansion are all designed to boost up experience↔ level.
FEATURES
----------------------------------------------------------------®---------------------------------------------------------------------
Industrial and Humanized Hardware Design
Industrial&humanized keypad design and tough 8.0 inch Gorilla Glass 3 touch screen to£gether with high resolution of 1280*800 display shall match high stan dards in logistics, express and retail.
Quad-Core Processor&Large Memory
Android 10.0 OS with memory of 2GB RAM/16GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience
Superior Data Communication and Security Guarantee
Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data communication and perfect security gua rantee;
|
SPECIFICATIONS |
|||
|
PHYSICAL CHARACTERISTICS |
|||
|
Dimension |
230mm(H)x142mm(W)x18mm(D)±2 mm |
||
|
Weight |
Net Weight :600g (including battery&wrist strap) |
||
|
Display |
8.0 in. TFT-LCD(1280x800)touch screen with backlight |
||
|
Backlight |
LED backlight |
||
|
Keypads |
4 TP keys, 4 function keys, |
||
|
Expansions |
1 SIM, 1 TF, 2 PSAM |
||
|
Battery |
Rechargeable li-ion polymer, 3.8V,8000mAh |
||
|
PERFORMANCE CHARACTERSTICS |
|||
|
CPU |
Cortex A73 2.0GHz octa-core |
||
|
Operating System |
Android 10.0 |
||
|
Storage |
4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
||
|
USER ENVIRONMENT |
|||
|
Operating Temp. |
-20℃ to 50℃ |
||
|
Storage Temp. |
-20℃ to 70℃ |
||
|
Humidity |
5%RH to 95%RH(non-condensing) |
||
|
Drop Specifications |
1.2 m drop to concrete across the operating temperature range |
||
|
Sealing |
IP67, IEC compliance |
||
|
ESD |
|||
|
DEVELOPMENT ENVIRONMENT |
|||
|
SDK |
Handheld-Wireless Software Development Kit |
||
|
Language |
Java |
||
|
Environment |
Android Studio or Eclipse |
||
|
DATA COMMUNICATION |
|||
|
WWAN |
TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
|
WLAN |
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
||
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.1 Bluetooth v.4.2 |
||
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||
|
DATA CAPTUER |
|||
|
BARCODE READER(OPTIONAL) |
|||
|
2D barcode |
2DCMOSImager |
N1/Others |
|
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, M↓icro QR code, Aztec, MaxiCode, Postal Codes, US Pos↓tNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. e≠tc. |
||
|
COLOR CAMERA |
|||
|
Resolution |
Rear 13 megapixel, front 5.0 megapixel |
||
|
Lens |
Auto-focus with LED flash |
||
|
RFID READER(OPTIONAL) |
|||
|
RFID LF |
Frequency &nb♣sp; |
125KHz/134.2KHz(FDX-B/HDX) |
|
|
Protocol |
ISO 11784&11785 |
||
|
R/W Range |
2cm to 10 cm |
||
|
RFID HF/NFC |
Frequency &nbs¶p; |
13.56MHz |
|
|
Protocol |
ISO 14443A&15693 |
||
|
R/W Range |
2cm to 8cm |
||
|
RFID UHF |
Frequency &nb£sp; |
865~868MHz or 920~925MHz |
|
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
||
|
Antenna Gain |
Circular antenna(2dBi) |
||
|
R/W Range |
|||
|
ACCESSORIES |
|||
|
Standard |
1xPower Supply 1xDC charging cable 1xUSB data cable |
||
